Surge suppressors are used to protect circuits from transients (sudden, brief increases in voltage). Transients of widely varying magnitudes are caused by such circuit components as motors, coils, magnets, relays, and transformers. They are found in all electrical systems and they are notorious for damaging diodes, SCRs, transformers, triacs, and relay contacts.
Surge suppressors can be connected across individual components, part of a circuit, or to supply to an entire circuit. When the voltage is normal, they are in an “off” state and do nothing. However, when a transient raises the voltage they react very quickly and conduct the excess around the components they protect. When the transient has passed they return to normal “off” state. It is cheaper to use surge suppressors than it is to buy new components or have equipment out of service. Surge suppressors can be polar (for direct current circuits) or non-polar (for alternating current circuits) and can be assembled in different configurations to offer surge protection form 3 A to 130 A.
CEHCO surge suppressors are assembled from high-quality selenium cells. These selenium surge suppressors are characterized by extremely smooth operation-they pass increasing amounts of current as the voltage increases without the sudden changes that tend to characterize other types of surge suppressors. Selenium suppressors have a high shunt capacitance (0.05 MFD per square inch). And they react faster and have higher wattage capability than silicon suppressors. A brief description of selenium cells is shown bellow.
A sample of a 5″ x 6″ Polar Selenium Surge Suppressor, part number S25HX13EN2 is shown below: Each cell is rated for 130 A. Since two cells are in parallel, the system capability is doubled to 260 A.
Specifications:
- Selenium Surge Suppressor, P/N S25HX13EN2
- Cell size: 5" x 6"
- Each cell is rated for 25 V, 130 Amps
- Two row of cells are connected parallel
- Each row has 13 cells in series
- The selenium suppressor is rated for: 325 V, 260 Amps

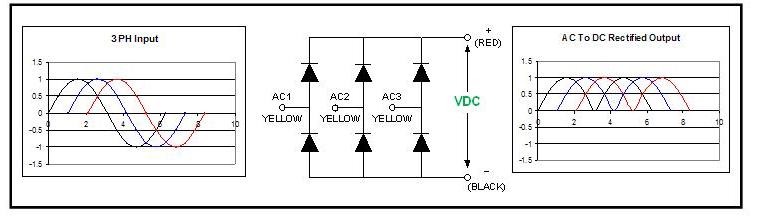

CEHCO is a selenium surge suppressor manufacturer. We keep all materials (i.e. diodes, SCR’s, heat sinks, etc.) in stock for immediate assembly. To discuss your specific rectifier stack requirements, please contact us toll free at (800) 595-7096, or send us an email at info@cehco.com.
